AQA · GCSE · Chemistry · Higher

Estimating krypton density from a graph

Q02.5 1 mark

Table 1 shows the densities of some of the elements in Group 0 of the periodic table.

Table 1
ElementAtomic numberDensity in mg/cm³
Helium20.2
Neon100.8
Argon181.6
Krypton36X
Xenon545.4
Radon869.1

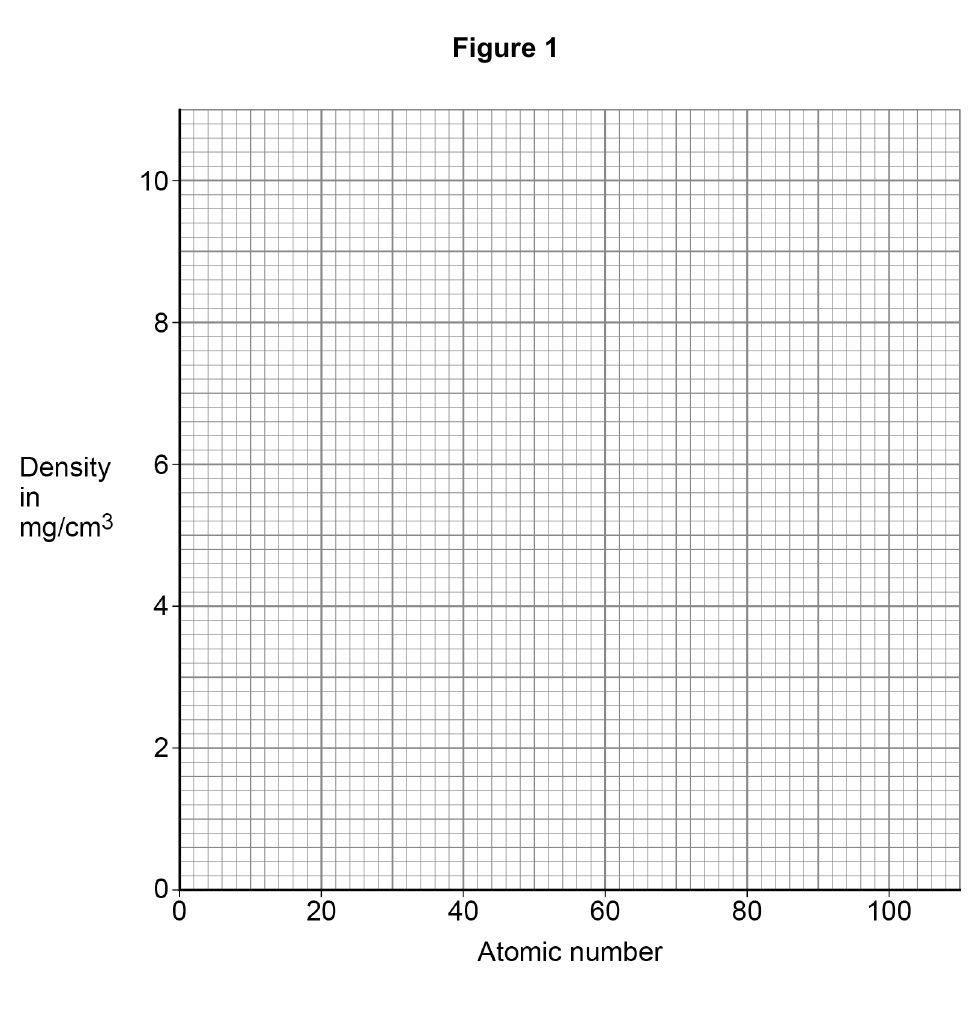

Figure 1
Figure 1

Figure 1

Enlarged question image

Figure 1

Estimate the density (X) of krypton. Use Figure 1 and Table 1.

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question
Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

  1. 1 Density estimate is in the inclusive range 3.0–3.8 mg/cm³.

Full-mark answer

At atomic number 36, the plotted trend gives a density of approximately 3.4 mg/cm³ (3.0–3.8 mg/cm³ is accepted).

Why this answer loses marks

I copied the density of the nearest plotted element.

Estimate at the requested horizontal position from the trend, rather than copying an existing row.
