Forward reaction energy profile

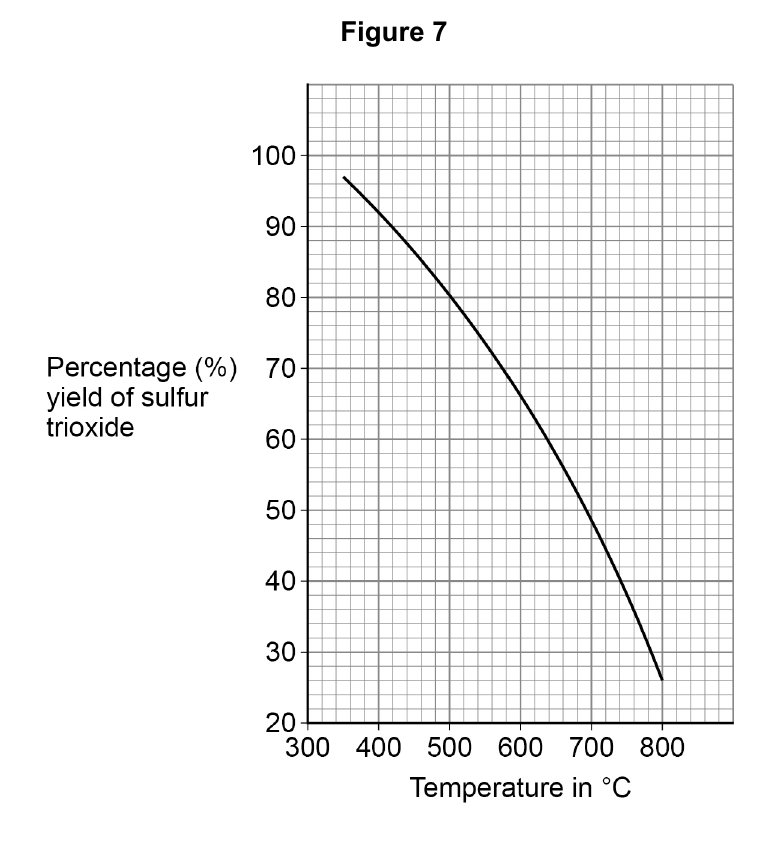

One stage in the industrial production of sulfuric acid is the reaction of sulfur dioxide with oxygen to produce sulfur trioxide. This reversible reaction reaches dynamic equilibrium. Figure 7 shows the percentage yield of sulfur trioxide in this reaction at different temperatures.
Which statement about the forward reaction is correct? Use Figure 7. Tick one box.
Write your answer first. You can study the marking guidance whenever you need it.
Study the marking See what earns credit and compare it with a full-mark answer.
Marking points
- 1 Selects ‘The yield is smaller at higher temperatures because the reaction is exothermic.’
Why this answer loses marks
Higher temperature always gives more product because particles react faster.
That confuses rate with equilibrium yield; the graph trend must be linked to the heat direction of the forward reaction.
