Seismic Shadow Zones Inside Earth

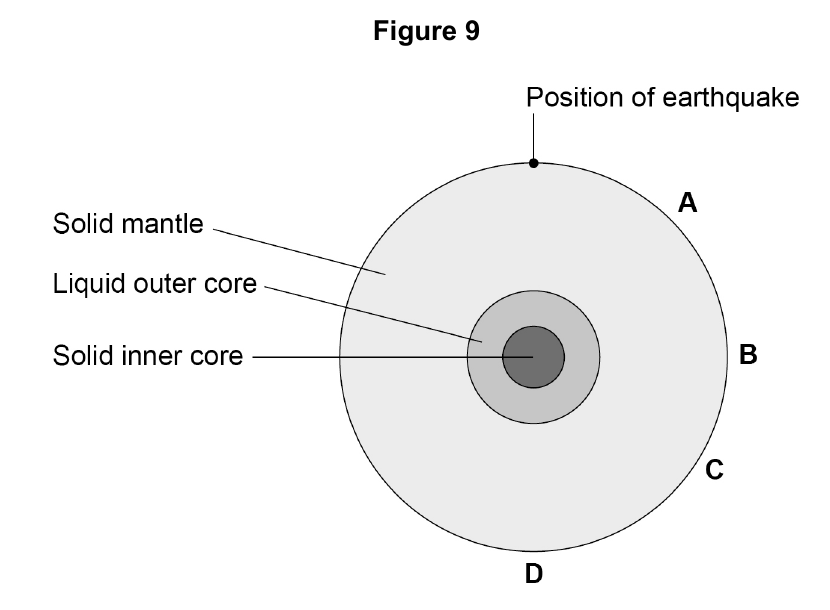

Figure 9 shows the layers inside the Earth. An earthquake occurs at the position shown.
Which letter shows the position where only P-waves will be detected? Give a reason for your answer. Tick one box.
Practice unavailable
This question can be viewed, but its original response format is not available for practice yet.
Write your answer first. You can study the marking guidance whenever you need it.
Study the marking See what earns credit and compare it with a full-mark answer.
Marking points
- 1 Selects D.
- 2 Explains that P-waves can pass through the liquid outer core but S-waves cannot.
Full-mark answer
D. P-waves can travel through the liquid outer core, but S-waves cannot, so only P-waves reach D.
Why this answer loses marks
Selects a position using distance from the earthquake alone.
The deciding evidence is whether the path crosses the liquid outer core, which passes P-waves but blocks S-waves.
