AQA · GCSE · Combined Science · Higher

Energy-store changes in a gas boiler

Q05.3 3 marks

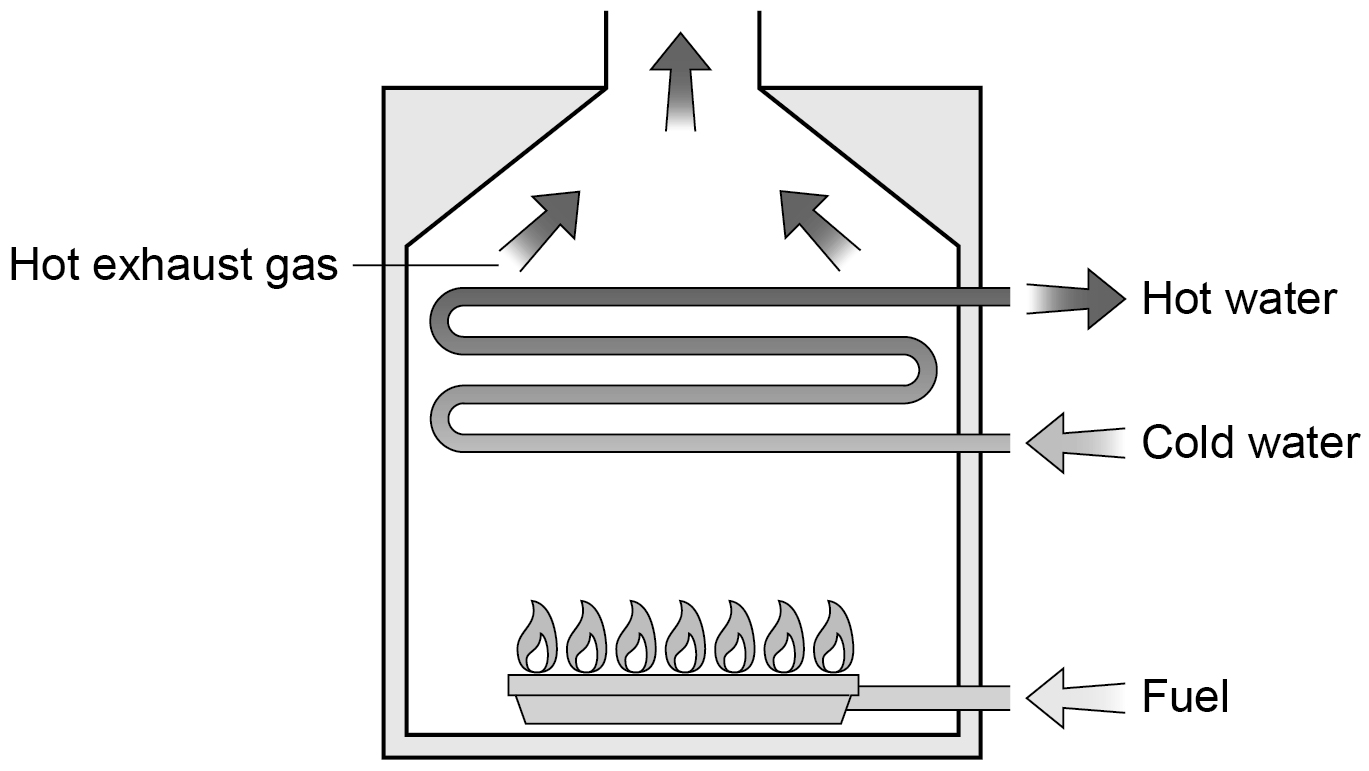

Diagram of a gas boiler with fuel entering, cold water entering, hot water leaving, and hot exhaust gas leaving.

Figure 8

Enlarged question image

Diagram of a gas boiler with fuel entering, cold water entering, hot water leaving, and hot exhaust gas leaving.
Figure 8

Figure 8 shows the gas boiler used to heat the house.

Describe how different energy stores are changed by the boiler.

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question
Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

  1. 1 State that the chemical energy store of the fuel decreases.
  2. 2 State that the thermal energy store of the water increases.
  3. 3 State that the thermal energy store of the air or atmosphere increases.

Full-mark answer

The chemical energy store of the fuel decreases. The thermal energy store of the water increases, and some energy also increases the thermal energy store of the air or atmosphere in the hot exhaust gases.

Why this answer loses marks

Energy is made by the boiler and goes into the water.

Energy stores must be described; energy is transferred, not created.
