AQA · GCSE · Combined Science · Higher

Viewing position and height measurement

Q05.1 2 marks

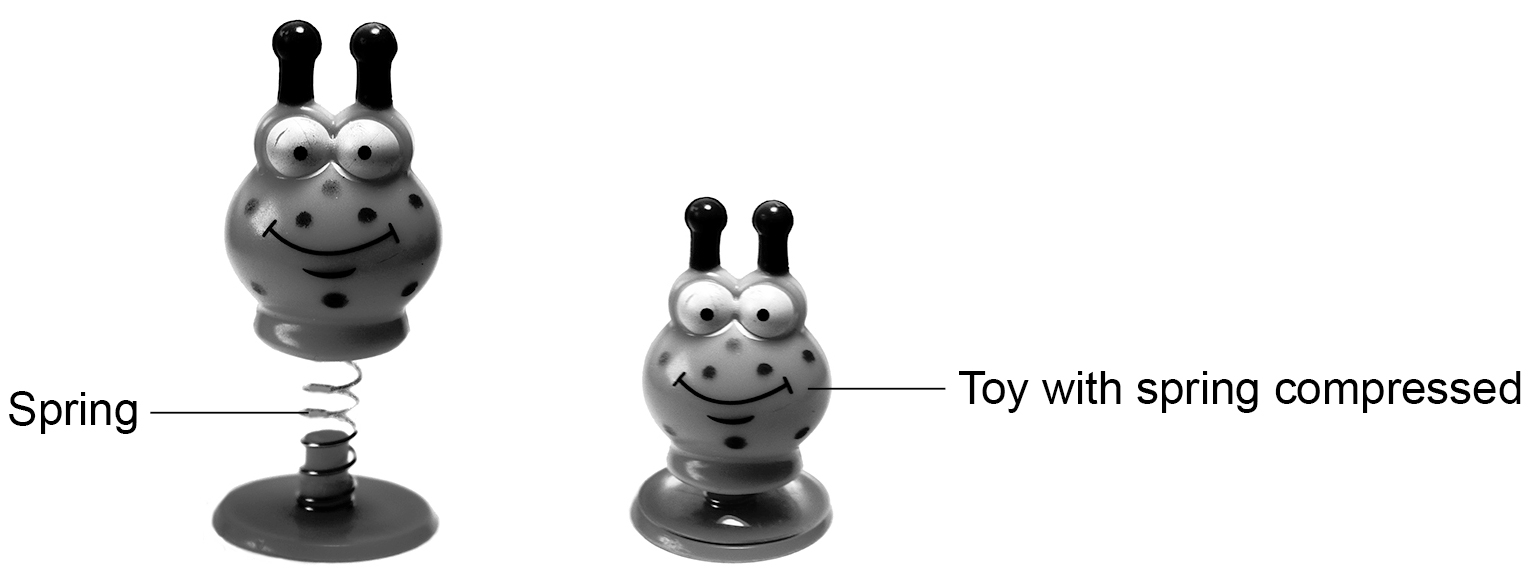

Figure 10 shows a child’s toy. A child pushes down on the toy to compress the spring. The spring then launches the toy into the air.

A child’s spring-loaded toy shown with the spring extended and with the spring compressed. Labels identify the spring and the toy with spring compressed.

Figure 10

Enlarged question image

A child’s spring-loaded toy shown with the spring extended and with the spring compressed. Labels identify the spring and the toy with spring compressed.
Figure 10

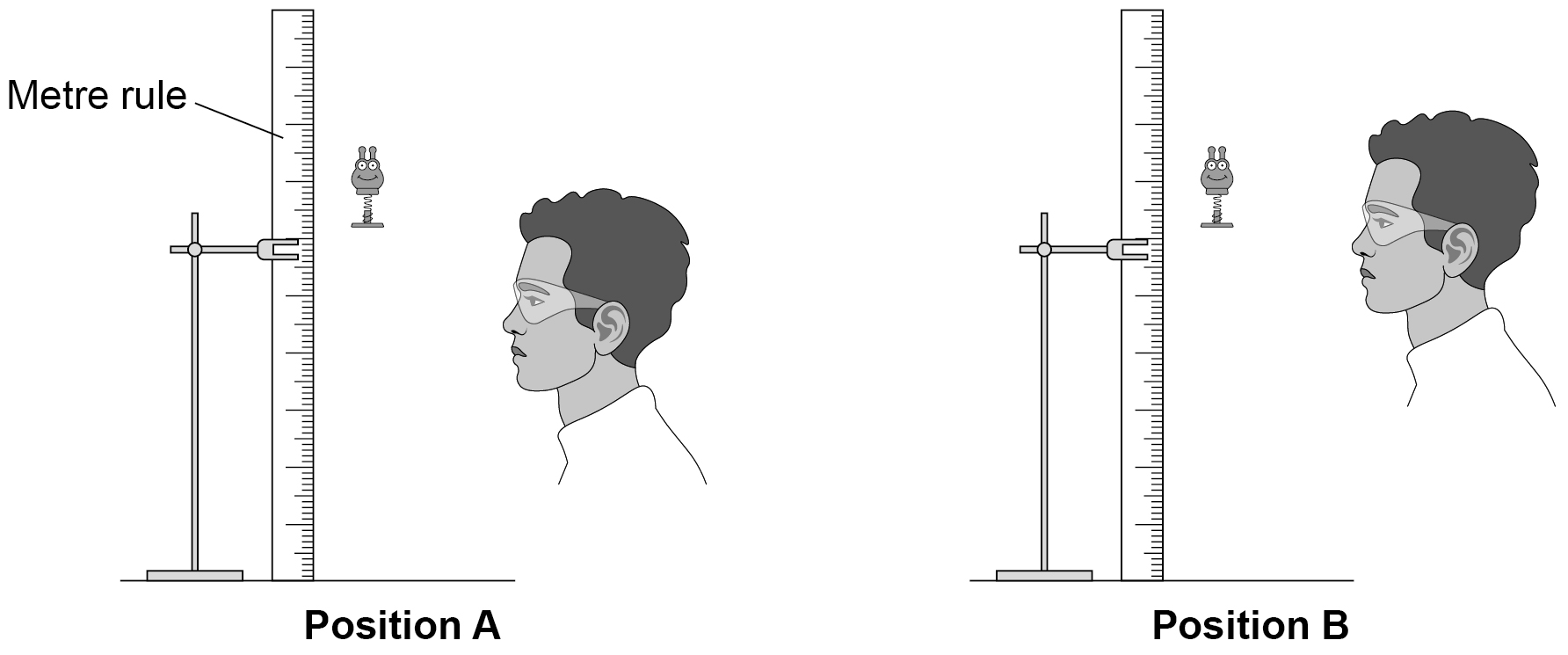

Diagram of a vertical metre rule beside a toy at maximum height, with a student observing from position A below the toy height and from position B with their eye level with the toy.

Figure 11

Enlarged question image

Diagram of a vertical metre rule beside a toy at maximum height, with a student observing from position A below the toy height and from position B with their eye level with the toy.
Figure 11

A student measured the maximum height reached by the toy.

The student placed a vertical metre rule near the toy, and observed the height reached by the toy.

The student repeated the experiment, observing from a different position.

Figure 11 shows the toy at its maximum height and the two positions of the student.

Observing the toy from position B instead of position A affected the measurement of the maximum height reached by the toy.

Explain how.

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question
Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

  1. 1 State that the measurement from position B will be more accurate.
  2. 2 Explain that in position B the observer’s eye is level with the maximum height of the toy.

Full-mark answer

The measurement will be more accurate from position B because the student’s eye is level with the maximum height of the toy, reducing parallax error.

Why this answer loses marks

Position B makes the toy look higher.

The credited effect is that the reading is more accurate because the eye is level with the toy, not simply that the toy appears higher.
