Driver’s reaction time calculation

Q06.1 3 marks

The distance a car travels during the driver’s reaction time is called the thinking distance. Figure 9 shows how thinking distance depends on speed for a car.

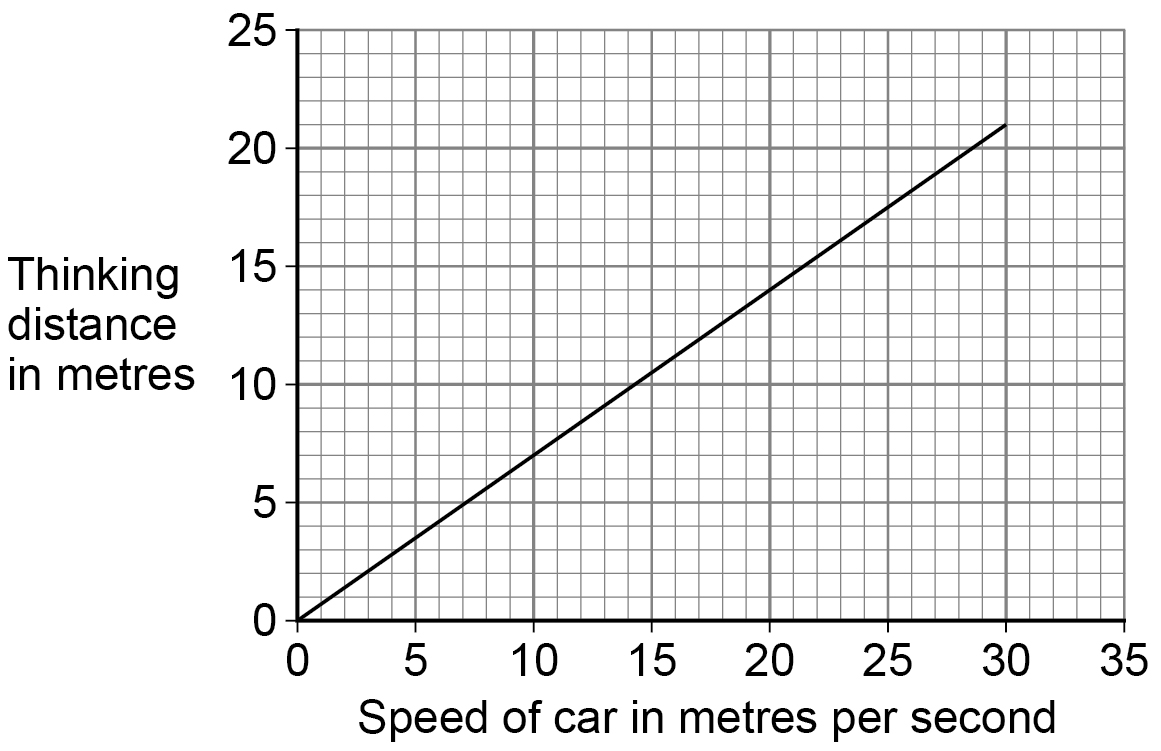

Line graph titled Figure 9. The y-axis is thinking distance in metres from 0 to 25. The x-axis is speed of car in metres per second from 0 to 35. A straight line starts at 0 m at 0 m/s and rises to about 21 m at 30 m/s. — Figure 9

Determine the driver’s reaction time. Use the Physics Equations Sheet.

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question

Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

1 Use a correct pair of values from the graph, such as thinking distance $21\ \mathrm{m}$ at speed $30\ \mathrm{m/s}$ .
2 Rearrange or substitute into $\text{distance}=\text{speed}\times\text{time}$ to find $t=\frac{21}{30}$ .
3 Give the reaction time as $0.7\ \mathrm{s}$ , or $0.70\ \mathrm{s}$ .

Full-mark answer

From the graph, at $30\ \mathrm{m/s}$ the thinking distance is about $21\ \mathrm{m}$ . Using $\text{distance}=\text{speed}\times\text{time}$ , $21=30t$ , so $t=\frac{21}{30}=0.7\ \mathrm{s}$ .

Why this answer loses marks

$21\times30=630\ \mathrm{s}$

The equation has not been rearranged to make time the subject.
