Frequency and Wavelength Investigation
A teacher demonstrated how the frequency of a wave on a string affects the wavelength of the wave.

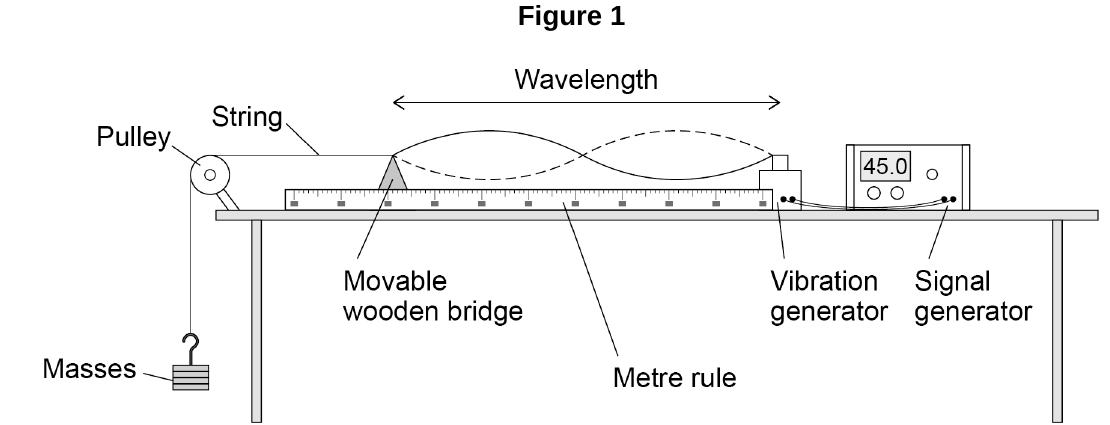

Figure 1 shows the equipment used.
The frequency of the signal generator is adjusted so that the wave shown in Figure 1 is seen.
At this frequency the string vibrates between the two positions shown in Figure 1.
Describe a method the teacher could use to investigate how the frequency of the wave affects the wavelength.
Write your answer first. You can study the marking guidance whenever you need it.
Study the marking See what earns credit and compare it with a full-mark answer.
Marking points
- 1 Gives a method capable of producing a valid frequency-wavelength outcome, with key steps in a logical sequence.
- 2 Explains how frequency is varied and a steady/stationary wave pattern is obtained.
- 3 Explains how wavelength is measured using the metre rule, moving the bridge as needed.
- 4 Controls the number of masses and repeats for different frequencies or stationary-wave patterns.
Full-mark answer
Keep the number of masses the same so the tension stays constant. Set a frequency on the signal generator and move the wooden bridge until a steady stationary wave is produced. Measure the wavelength with the metre rule. Repeat for a range of frequencies, obtaining a stationary wave and measuring its wavelength each time.
Why this answer loses marks
Change the frequency and record the wavelength.
This does not say how to obtain a stationary wave, measure wavelength, keep the tension constant, or repeat across frequencies, so it is not a valid sequenced method.
