Measuring spring compression
A student investigated a spring with a different spring constant.
When masses are placed on the spring it compresses.
The student measured the compression of the spring for different masses.

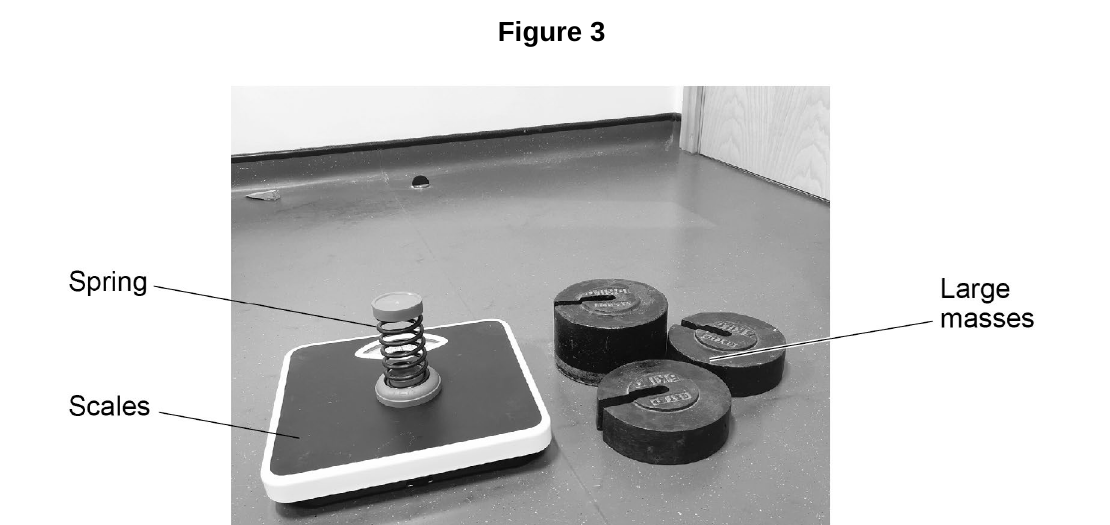

Figure 3 shows some of the equipment used.
Describe how the compression of the spring could be determined.
Write your answer first. You can study the marking guidance whenever you need it.
Study the marking See what earns credit and compare it with a full-mark answer.
Marking points
- 1 Obtains the necessary measurements: original and compressed lengths, or the force/weight on the spring.
- 2 Calculates compression by subtracting the lengths, or uses e = F/k.
Full-mark answer
Use a metre rule to measure the spring's original length and then its compressed length with a mass added. Calculate the compression as original length minus compressed length.
Why this answer loses marks
Measure the compressed spring with a ruler.
Compression is the change in length, so both the original and compressed lengths are needed before subtracting.
