Compression Change on Spring Graph

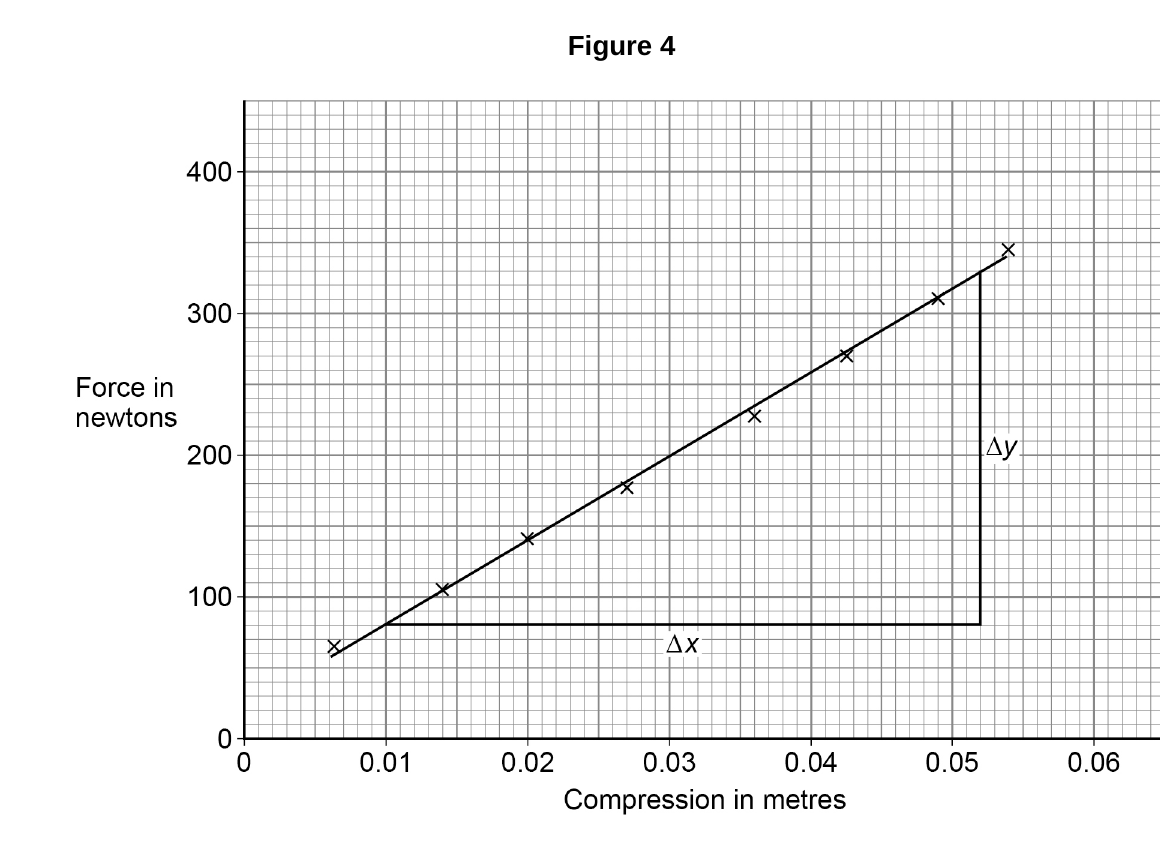

The student measured the compression of the spring for different masses. Figure 4 shows the results.
Determine the value Δx on Figure 4.
Write your answer first. You can study the marking guidance whenever you need it.
Study the marking See what earns credit and compare it with a full-mark answer.
Marking points
- 1 Determines Δx as 0.042 m from the marked graph interval.
Full-mark answer
Δx = 0.052 m − 0.010 m = 0.042 m.
Why this answer loses marks
I used the vertical side of the gradient triangle.
This part asks for the horizontal change, so both endpoints must come from the horizontal axis.
