Reversing current and potential-difference signs

Q01.3 1 mark

A student investigated how the current in a resistor varies with the potential difference across the resistor using a circuit with a cell.

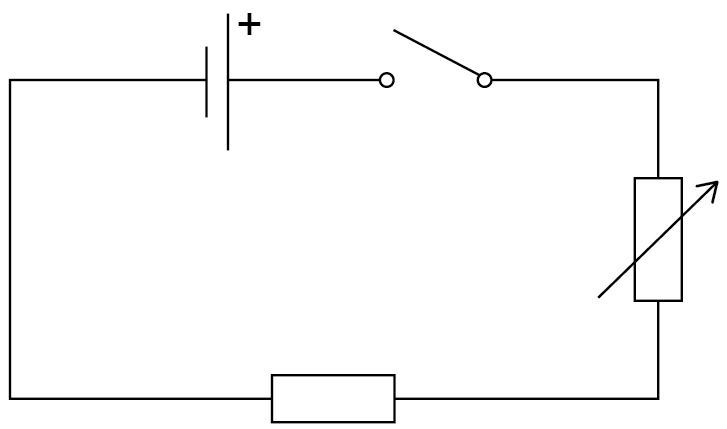

Circuit diagram showing a cell, an open switch, a fixed resistor and a variable resistor connected in a single loop.

Figure 1

Enlarged question image

Circuit diagram showing a cell, an open switch, a fixed resistor and a variable resistor connected in a single loop.
Figure 1

How should the student change the circuit to give negative values for current and potential difference?

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question
Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

  1. 1 State that the connections to the cell should be reversed.

Full-mark answer

Reverse the connections to the cell.

Why this answer loses marks

Swap the ammeter and voltmeter around.

Changing meter positions would not reverse the polarity of the supply.
