Wire length and resistance

Q03.3 2 marks

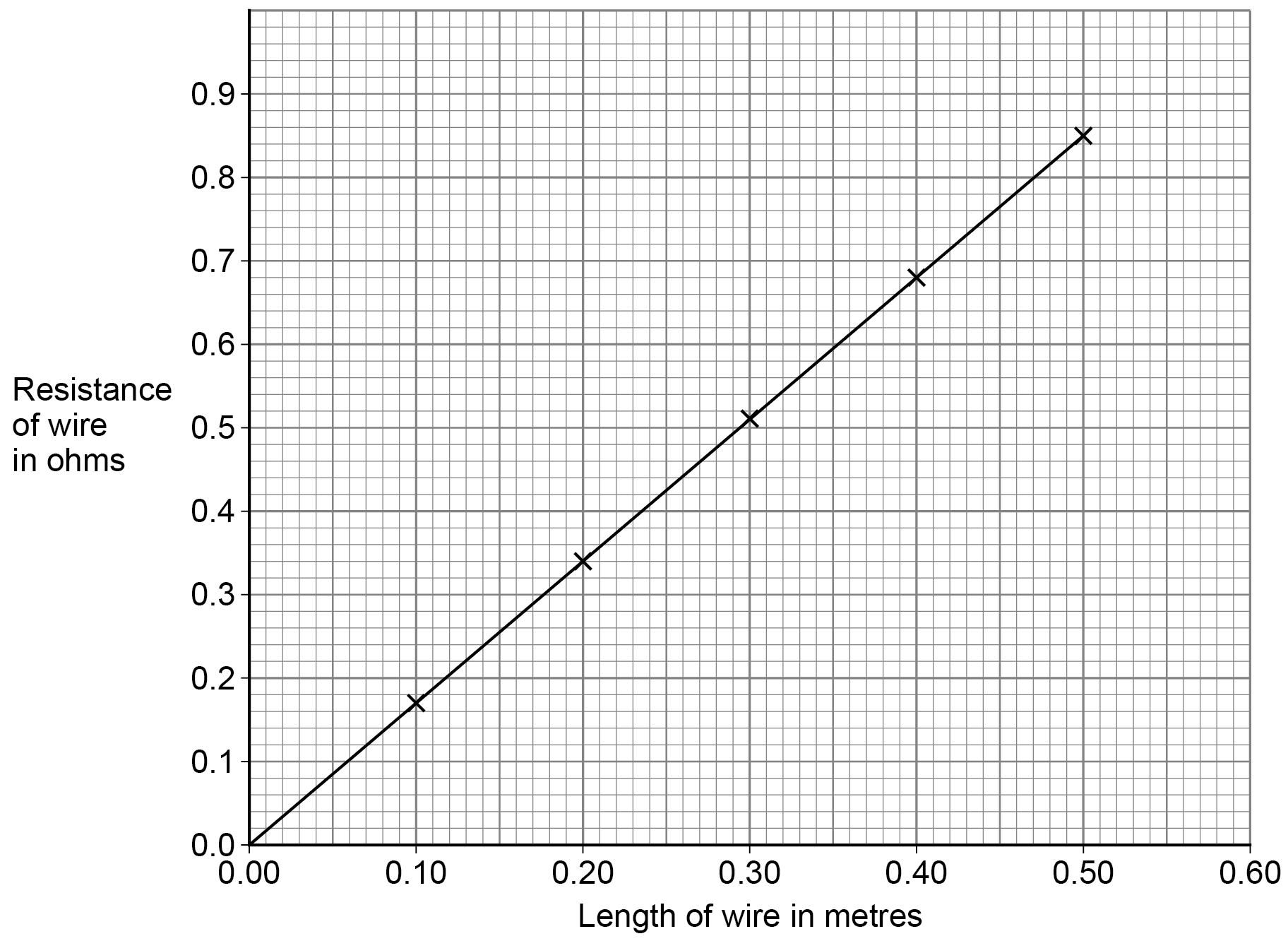

A student investigated how the resistance of a piece of wire varies with its length. Figure 3 shows the results for five different lengths of the wire.

Graph of resistance of wire in ohms against length of wire in metres. The x-axis runs from 0.00 to 0.60 m. The y-axis runs from 0.0 to about 0.9 ohms. Five plotted points lie on a straight line through the origin, approximately at (0.10, 0.17), (0.20, 0.34), (0.30, 0.51), (0.40, 0.68) and (0.50, 0.85), showing resistance increasing linearly with length.

Figure 3

Enlarged question image

Graph of resistance of wire in ohms against length of wire in metres. The x-axis runs from 0.00 to 0.60 m. The y-axis runs from 0.0 to about 0.9 ohms. Five plotted points lie on a straight line through the origin, approximately at (0.10, 0.17), (0.20, 0.34), (0.30, 0.51), (0.40, 0.68) and (0.50, 0.85), showing resistance increasing linearly with length.
Figure 3

Describe the relationship between the length of the wire and the resistance of the wire.

Write your answer first. You can study the marking guidance whenever you need it.

Answer this question
Study the marking See what earns credit and compare it with a full-mark answer.

Marking points

  1. 1 State that as the length of the wire increases, the resistance increases.
  2. 2 State that the relationship is directly proportional, meaning the graph is a straight line through the origin.

Full-mark answer

The resistance of the wire is directly proportional to its length: as the length increases, the resistance increases in a straight-line relationship through the origin.

Why this answer loses marks

The resistance goes up when the length goes up.

This describes a positive correlation and may gain partial credit, but it does not state direct proportionality.
